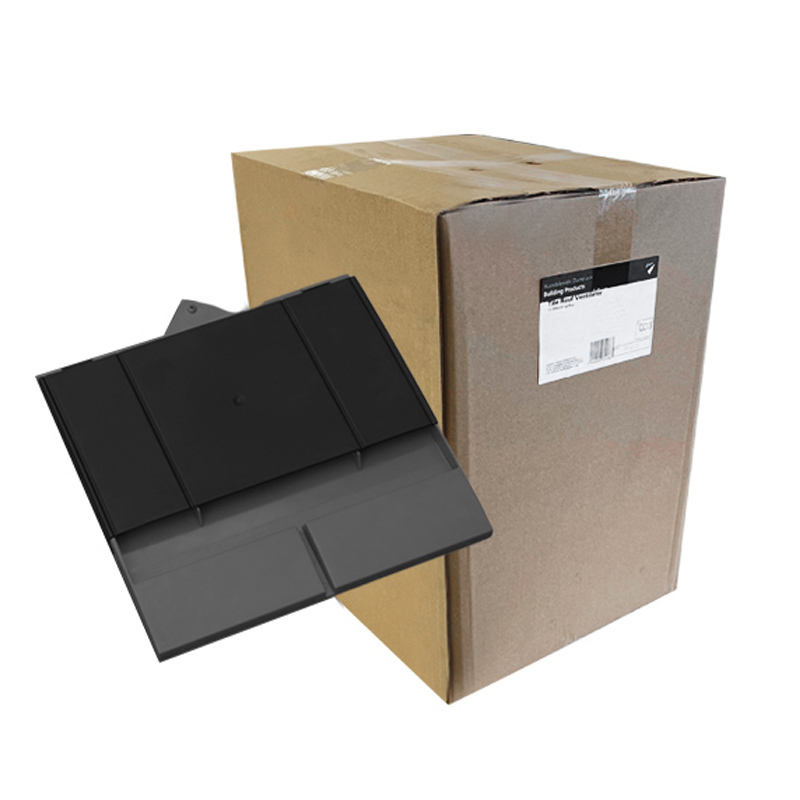

Hambleside Danelaw Double Plain Tile Vent TV10/9 Slate Grey Box of 5
High Performance Roof Ventilation for Plain Tile Roofs
Maintain a healthy, well-ventilated roof space with the Hambleside Danelaw Double Plain Tile Vent TV10/9. Designed to replace two plain clay or concrete roof tiles, this discreet flush-fitting roof vent provides effective ventilation while maintaining a clean and uninterrupted roofline.
Unlike many traditional roof vents, the TV10/9 blends neatly into the roof covering, making it ideal for both modern developments and traditional properties. As a result, you can improve roof ventilation without compromising the appearance of your roof.
Furthermore, each vent provides an impressive 6100mm² effective ventilation area, helping fresh air circulate through the roof space. Consequently, it reduces the risk of condensation, damp, mould growth and timber decay while helping to protect insulation and extend the lifespan of the roof structure.
Designed for More Than Roof Ventilation
The TV10/9 offers far more than simple loft ventilation. When used with the optional HD DPCA adaptor or HD DPCSPA Soil Pipe Adaptor Kit, it connects directly to standard 110mm pipework for soil ventilation or mechanical extraction systems.
Therefore, the same roof vent can provide:
- Roof space ventilation
- High-level roof ventilation
- Low-level roof ventilation
- Soil vent pipe termination
- Bathroom extractor ventilation
- Kitchen extraction ducting
- Mechanical ventilation systems
This versatility makes the TV10/9 one of the most flexible plain tile vents available.
Built for Long-Term Performance
Hambleside Danelaw manufactures the TV10/9 from UV-stabilised polypropylene and polycarbonate to provide excellent durability in harsh weather conditions.
Moreover, the vent resists acid rain, UV degradation and temperature changes, allowing it to maintain its appearance and performance year after year. In addition, the rear section contains up to 70% recycled polypropylene, helping reduce environmental impact without compromising strength.
Quick and Straightforward Installation
Installing the TV10/9 is both simple and efficient. Unlike some roof ventilation systems, this vent requires no batten cutting, helping installers save time during both new-build and refurbishment projects.
Firstly, position the vent in place of two plain roof tiles. Next, prepare the roofing underlay by cutting a snug V-shaped opening around the vent spigot to help deflect moisture away from the underlay. Afterwards, secure the vent through the top fixing flange before completing the surrounding roof covering.
If you require soil ventilation or mechanical extraction, simply fit the optional adaptor beneath the vent and connect the 110mm pipework from inside the roof space. Consequently, you can create a complete ventilation system without altering the external appearance of the roof.
Why Choose the Hambleside Danelaw TV10/9?
- Flush-fitting design replaces two plain roof tiles
- Provides 6100mm² effective ventilation area
- Helps reduce condensation and roof space moisture
- Suitable for high and low-level roof ventilation
- Compatible with 110mm soil pipe adaptors
- Suitable for mechanical extraction systems
- No batten cutting required
- Fast and straightforward installation
- UV stabilised and acid rain resistant
- Manufactured using up to 70% recycled polypropylene
- Suitable for handmade and machine-made plain tiles
- Complies with BS 5250 and BS 5534
- Backed by a 20-year manufacturer guarantee
Compatible Roof Tiles
The TV10/9 is compatible with many of the UK's most popular plain tile manufacturers, including:
- Marley Plain Tiles
- BMI Redland Plain Tiles
- Russell Plain Tiles
- Sandtoft (Wienerberger) Plain Tiles
- Scot Tiles Plain Tiles
- Handmade Plain Clay Tiles
- Machine-Made Plain Concrete Tiles
For additional compatibility, Hambleside Danelaw also offers dedicated adaptor kits for numerous tile profiles.
Trusted Hambleside Danelaw Quality
For decades, Hambleside Danelaw has supplied innovative roofing ventilation systems for residential, commercial and new-build developments across the UK.
Furthermore, the TV10/9 combines discreet styling, excellent airflow performance and exceptional durability in one professional solution. Consequently, roofing contractors, builders and merchants continue to specify this vent for projects where reliable roof ventilation and a high-quality finish matter most.
Whether you need to reduce condensation, improve loft ventilation or connect a mechanical extraction system, the Hambleside Danelaw Double Plain Tile Vent TV10/9 delivers dependable performance that lasts.
